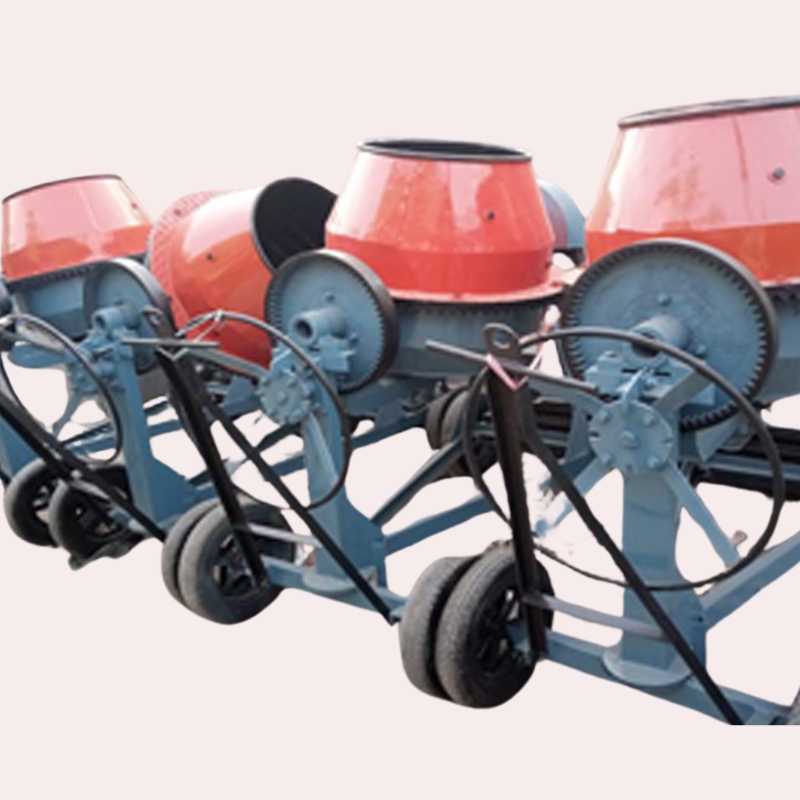

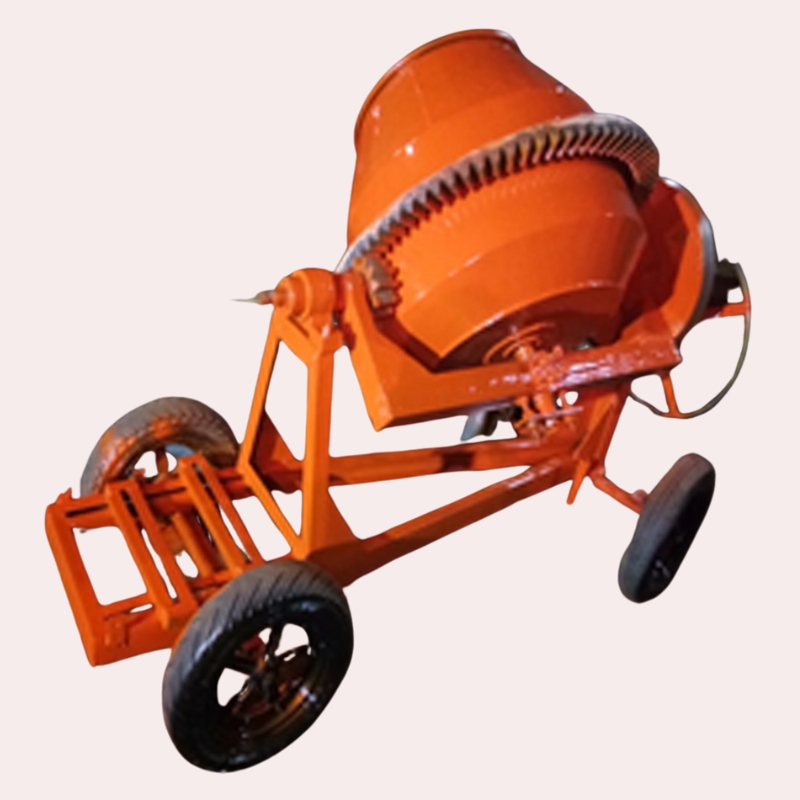

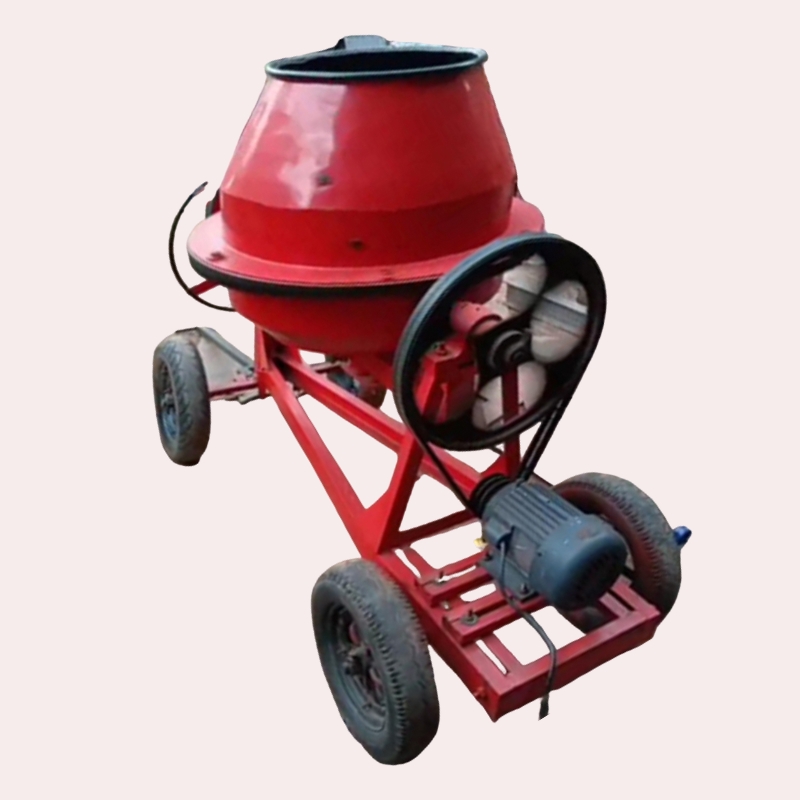

Half Bag Concrete Mixer
| Capacity | HALF BAG CAPACITY |
| Prime mover | Electric Motor /engine |
| Power Required (Motor/Engine) | 2 HP Motor / 5 HP Engine |
| Height of Machine | 3.2 feet |
| Weight of Machine | 200kg |
| Drum Thickness | Bottom –6mm Top – 4mm |
| SCOOTER | WHEEL |
| Gear | CI ( HARDANT) |
| Drum volume | 250 liter |
| Drive Threw Belt | |
| Mounted on 4 Wheel along with toeing attachment. | |

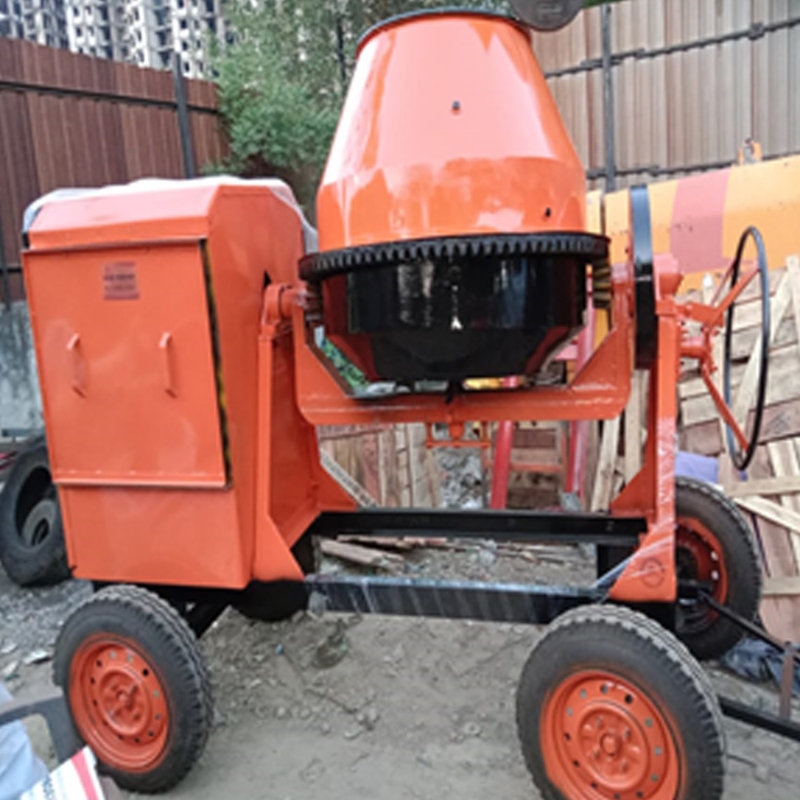

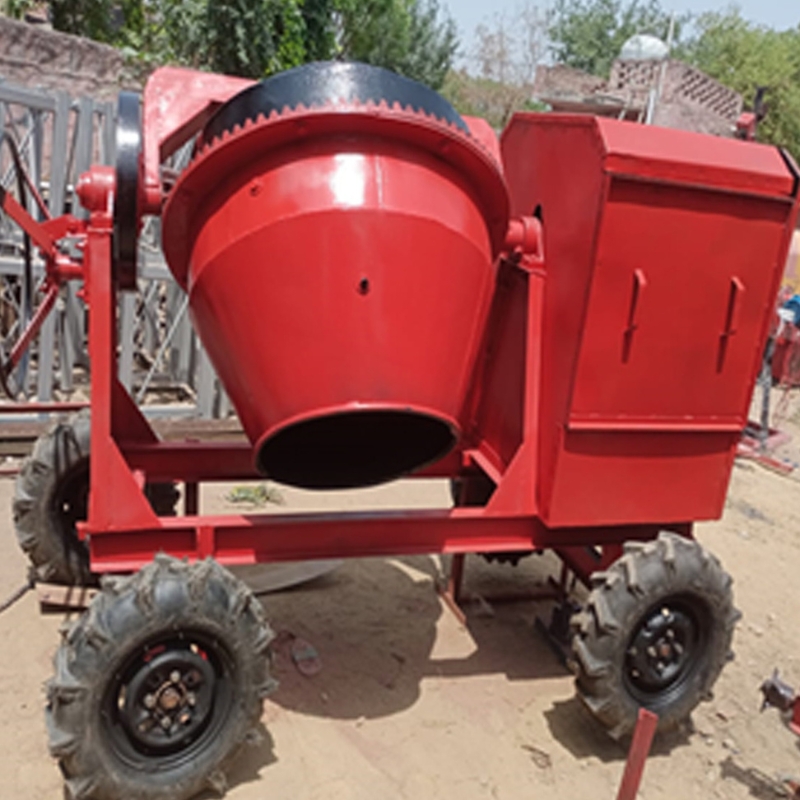

One Bag Concrete Mixer
| Capacity | 10/7 Cft ONE BAG CAPACITY |
| Prime mover | ENGINE |
| Power Required | 5 HP MOTOR/8 HP ENGINE |
| Height of Machine | 5.5 feet |
| Length of machine | 6.5 |
| Width of Machine | 4.5 |
| Weight of Machine | 630kg |
| Drum Thickness | Bottom – 10mm Top – 8mm |
| Drum size | 500 Ltr |
| Gear | CI ( Hardent) |
| Drive Threw Belt | |
| Mounted on 4 Wheel (Used Car Wheel) along with toeing attachment. | |
| MAKE (KNOXE) INDIAN | |

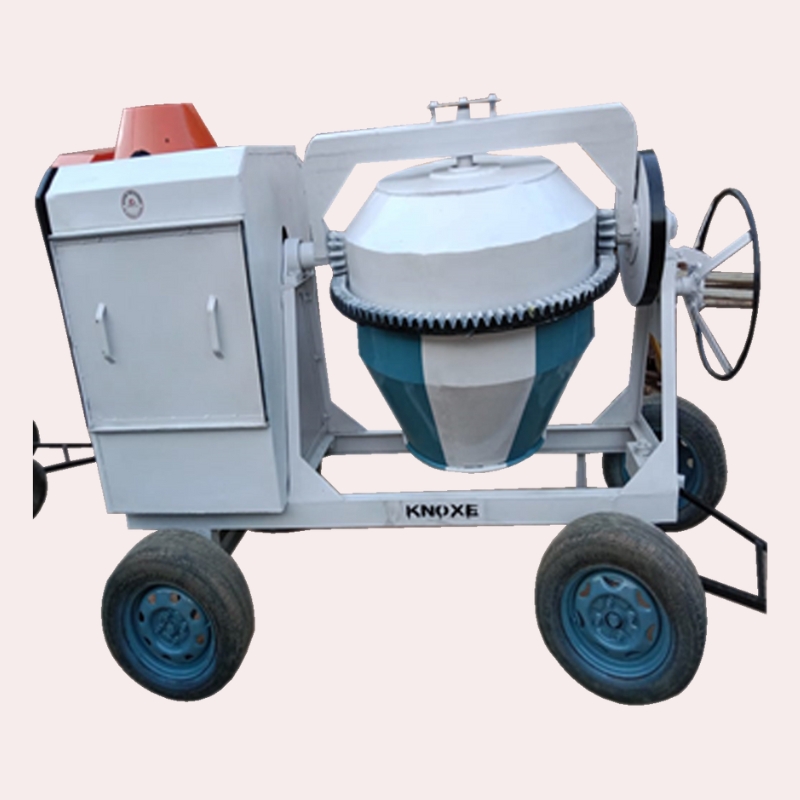

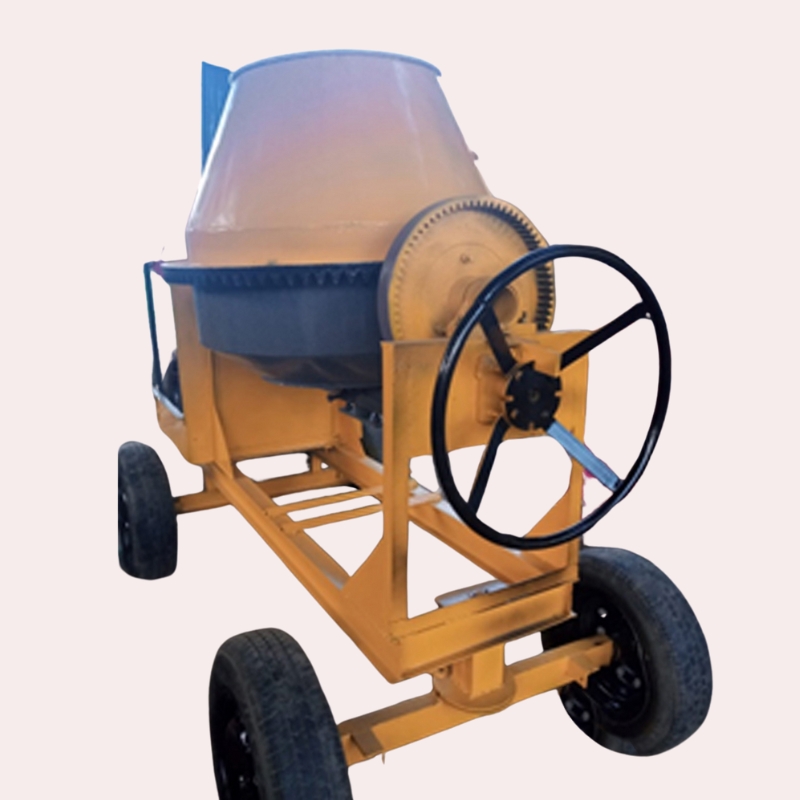

1.5 Bag Concrete Mixer
| BESH FRAME | 100*50MM |
| EXCEL CHANNAL | 750*40MM |
| CEBIN ANGAL | 30*5 MM |
| CEBIN SHEET | 18MM |
| CAPACITY | 15/10 CFT |
| TIKKY (BOTTAM ) | 10 MM HARDENT (EN 8) |
| PATTA (LOWER BOTTAM) | 8 MM |
| KALI (CENTER) | 8 MM |
| CHIMANI (TOP) | 3.150MM |
| BLADE | 40*8 MM |
| HANDI BEARING | 32211 |
| JHULA BEARING | 6208 |
| TYRE | R 13 USED CONDETION |
| REQUIRED POWER | 8 HP ENGINE /5 HP MOTOR |

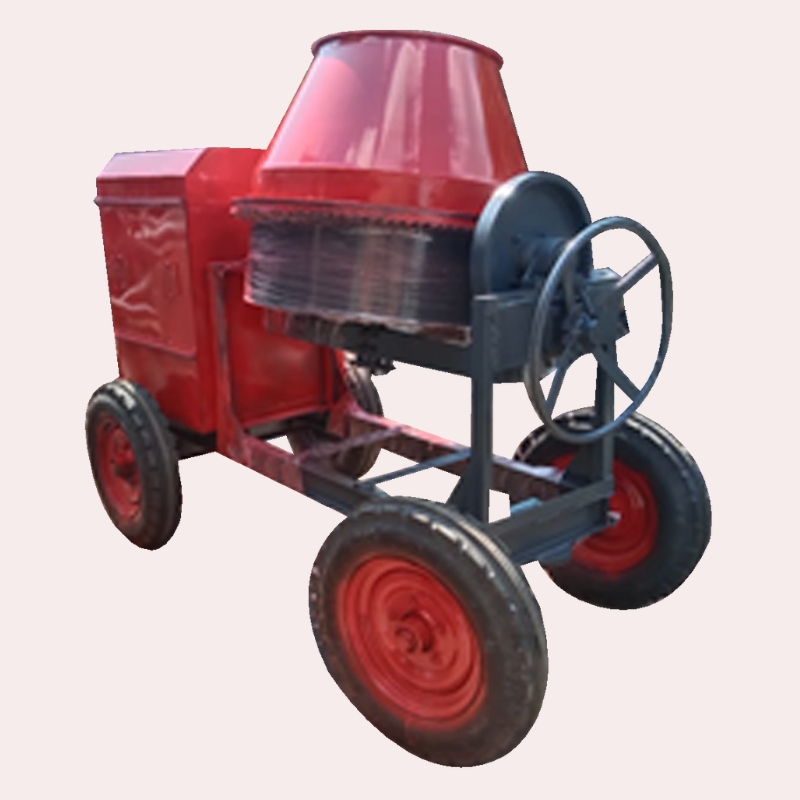

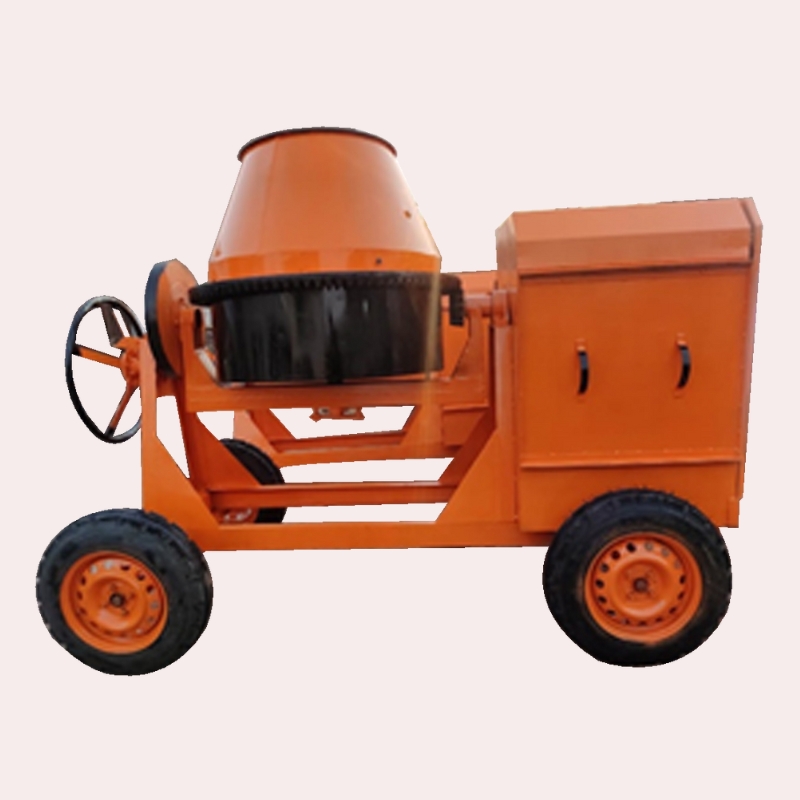

2 Bag Concrete Mixers
| BASE FRAME | 100*50MM |
| EXCEL CHANNAL | 750*40MM |
| CEBIN ANGAL | 30*5 MM |
| CEBIN SHEET | 18 GAUGE |
| CAPACITY | 20/15 CFT |
| TIKKY (BOTTAM) | 10 MM HARDENT (EN 8) |
| PATTA (LOWER BOTTAM) | 8 MM |
| KALI (CENTER) | 8 MM |
| CHIMANI (TOP) | 6 |
| BLADE | 40*8 MM |
| HANDI BEARING | 32211 |
| JHULA BEARING | 6208 |
| TYRE | R 14 USED CONDITION JEEP TYRE |
| REQUIRED POWER | 8 HP / 10 HP |
| WEIGHT OF MACHINE | 960 KG APPROX |

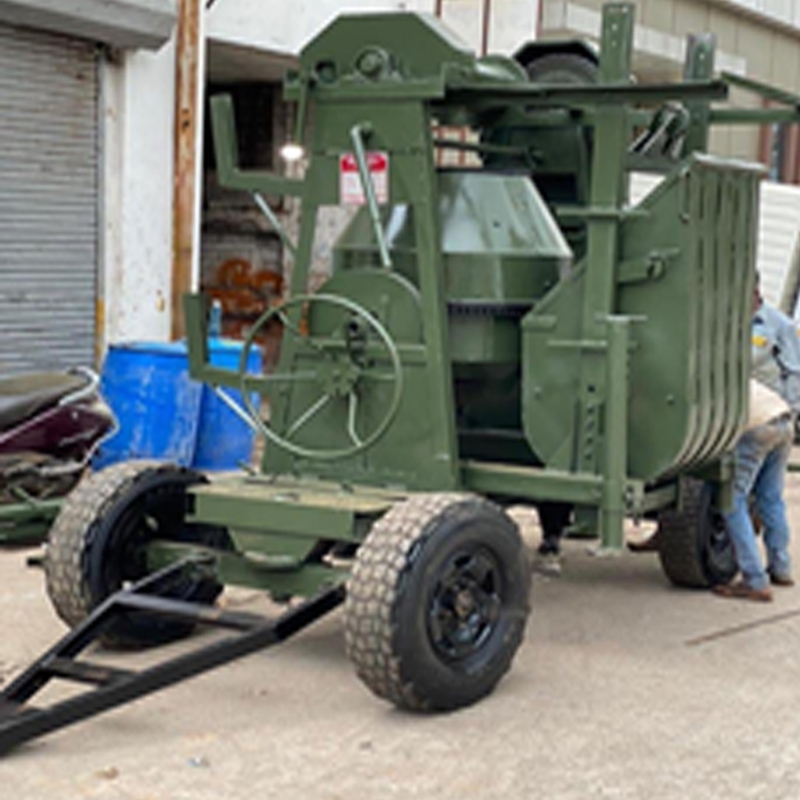

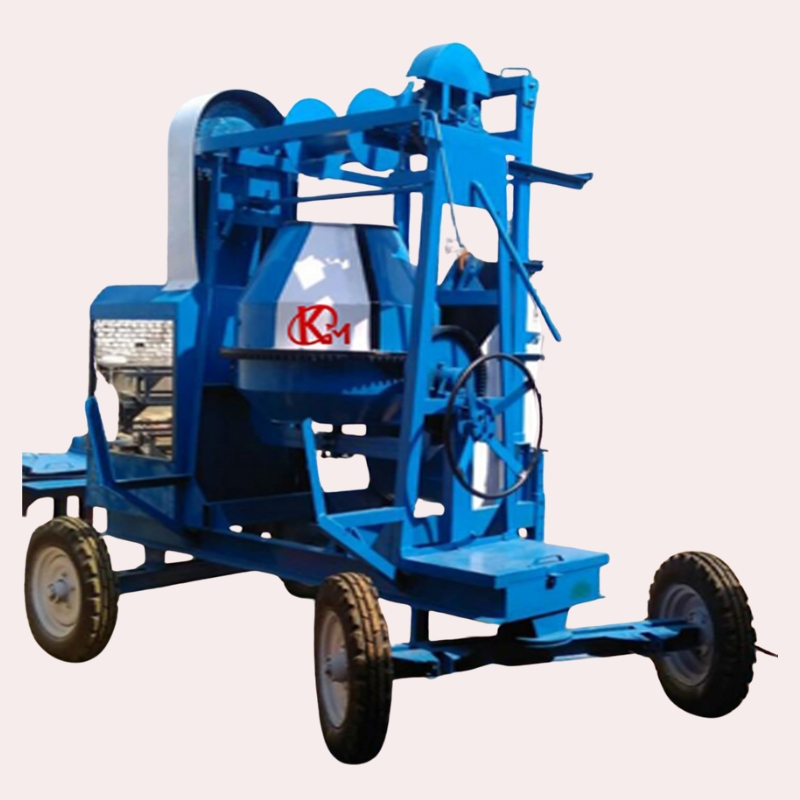

One Bag Concrete Mixer with Lift Two Channel Type
|
Capacity |
10/7 Cft |
|
Prime mover |
Engine |
|
Power |
10 HP Bharat Engine |
|
Make of engine/motor |
As your demand |
|
Make of Angle |
Rana/Rathi/Forture or similar |
|
Max. Lifting Height |
60 Feet. |
|
Structure |
Anti-Vibration structure |
|
Make of channel |
Sail/ Vizzak or semilar |
|
Drive System |
Gear/ Chain |
|
Wire Rope |
10 MM |
|
Special Feature |
Counter Weight Not Required |
|
Weight approx. |
2550 Kg |
|
Make of wire rope |
Mahadev(With Certificate) |
|
Drum Thickness |
Bottom – 10mm Top – 8mm |
|
Material of Drum |
Hard ant (EN-8) |
|
Gear |
CI ( HARDANT) |
|
Mounted on 4 Wheel along with toeing attachment |
|
Concrete Mixer with Single Bin Hyd. Hopper
|
BASE FRAME |
125*65MM |
|
EXCEL CHANNAL |
100*50MM |
|
CEBIN ANGAL |
40*5 MM |
|
CEBIN SITE |
18 GAGUGE |
|
MIXER HANDI |
10/7 CFT |
|
TIKKY |
12 MM HARDENT (EN8) |
|
PATTA |
8 MM |
|
KALI |
8 MM |
|
CHIMANI |
3.150MM |
|
BLADE |
40*8 MM |
|
HANDI BEARING |
32211 |
|
JHULA BEARING |
6208 |
|
TANK CAPACITY |
20 LTR |
|
TYRE MAKE |
14 NO |
|
HYD PUMP MAKE |
DOUTI CONTROLL |
|
HYD VALVE |
VICTOR |
|
ENGINE |
8 HP/10 HP |

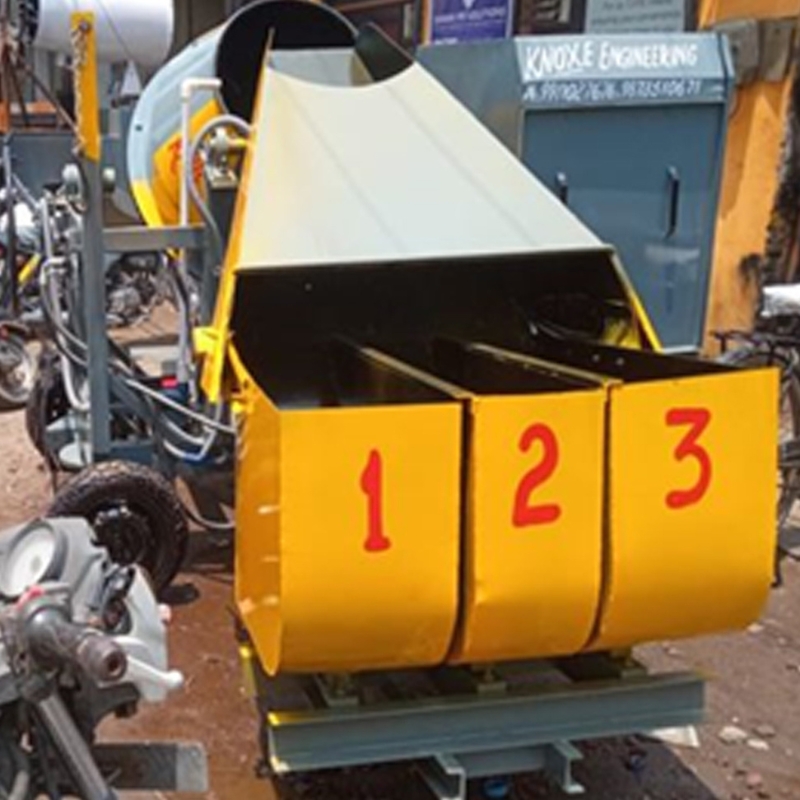

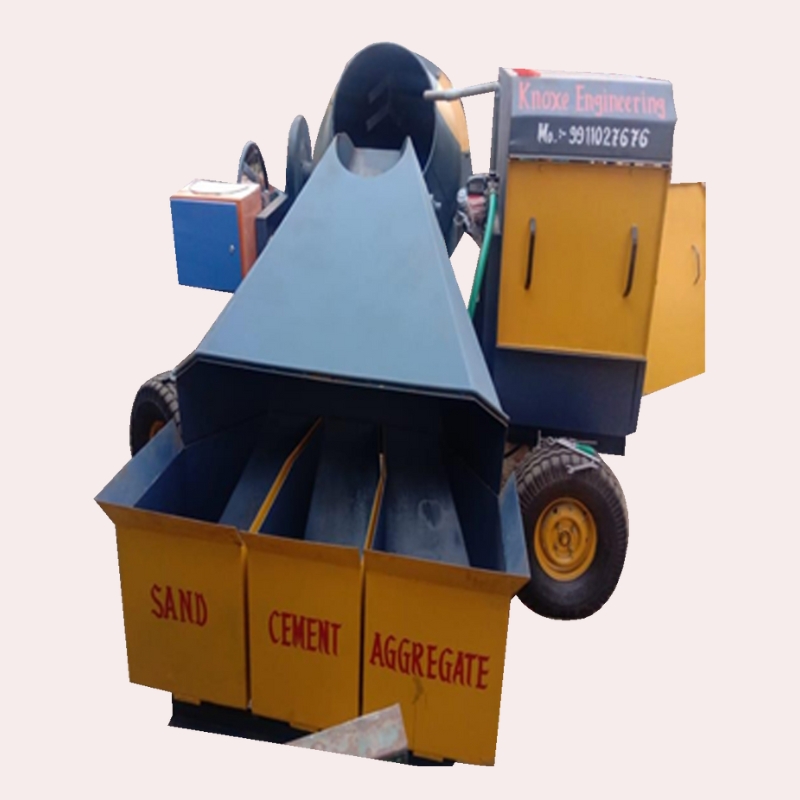

Concrete Mixer with 3 Bin Hyd. Hopper Weighing System
| MODEL | 250T |
| Batching capacity LTR | 250 Ltrs 500KG |
| Weighing System Type | Electronic load cell |
| Batch capacity | 4 cubm/hr |
| Motor /Engine | 5 H.P/ 8 HP |
| No. Of Tyre | 4 |
| NO. Of Bins | 3 |
| Hydraulic Pump | 24 (LPM) |
| Make OF hyd. Pump | Douty |
| Weight Cabin Sheet Tikki (Bottom) Patta (Lower Bottom) | 1750kg Approx 18 gauge 10mm 8mm |
| Chimani (Top) | 6 mm |
| Paint | As For Required |
| It includes three Bin weighing system. | |

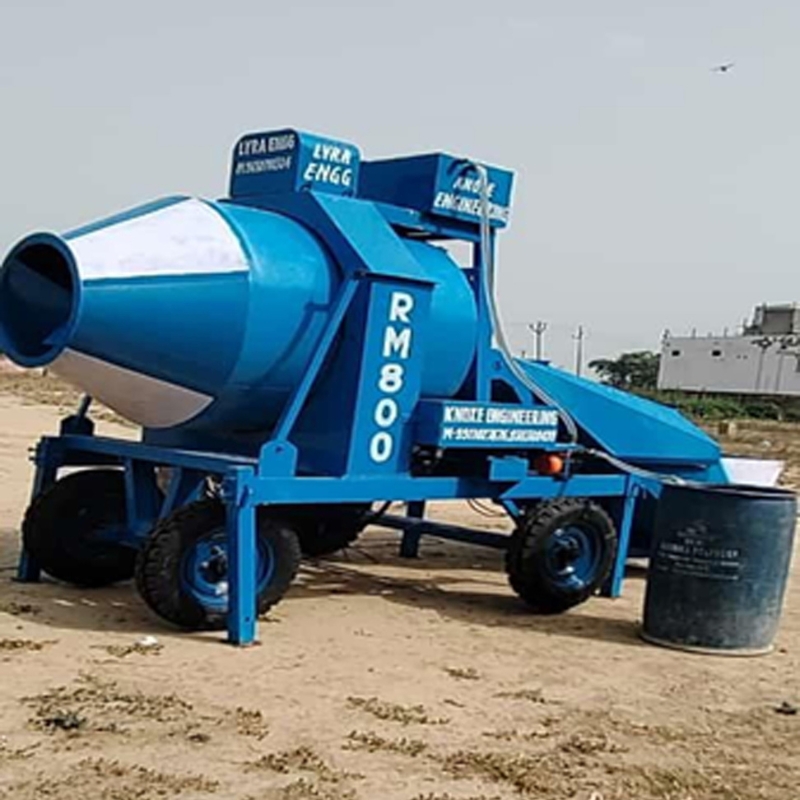

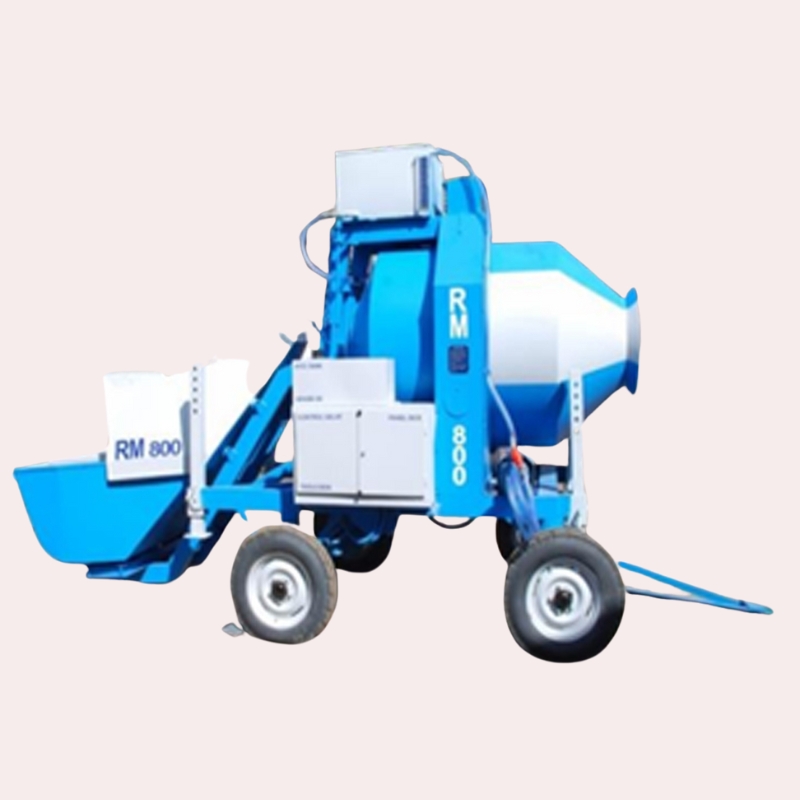

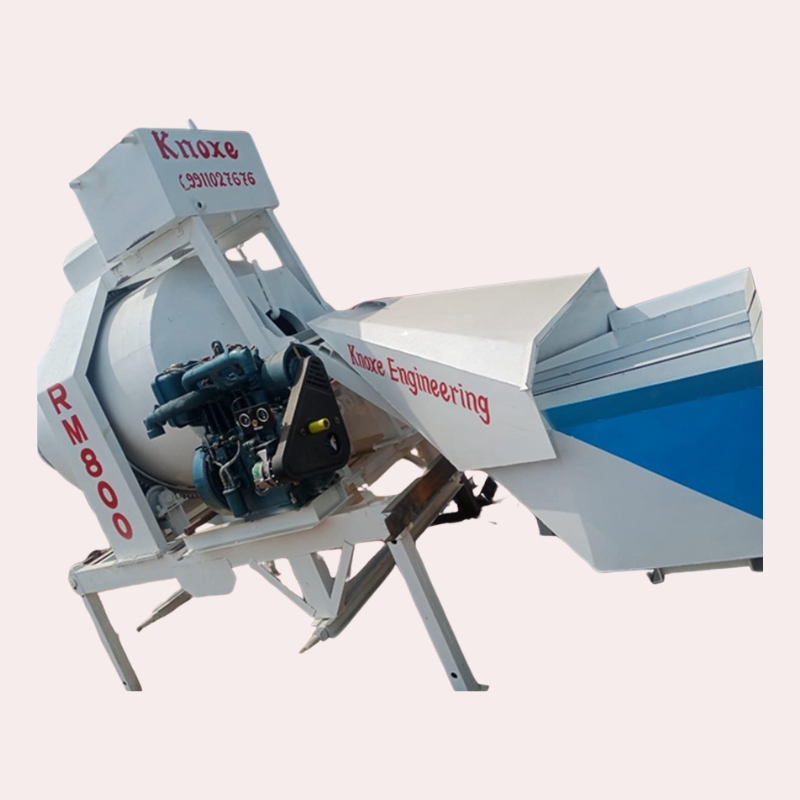

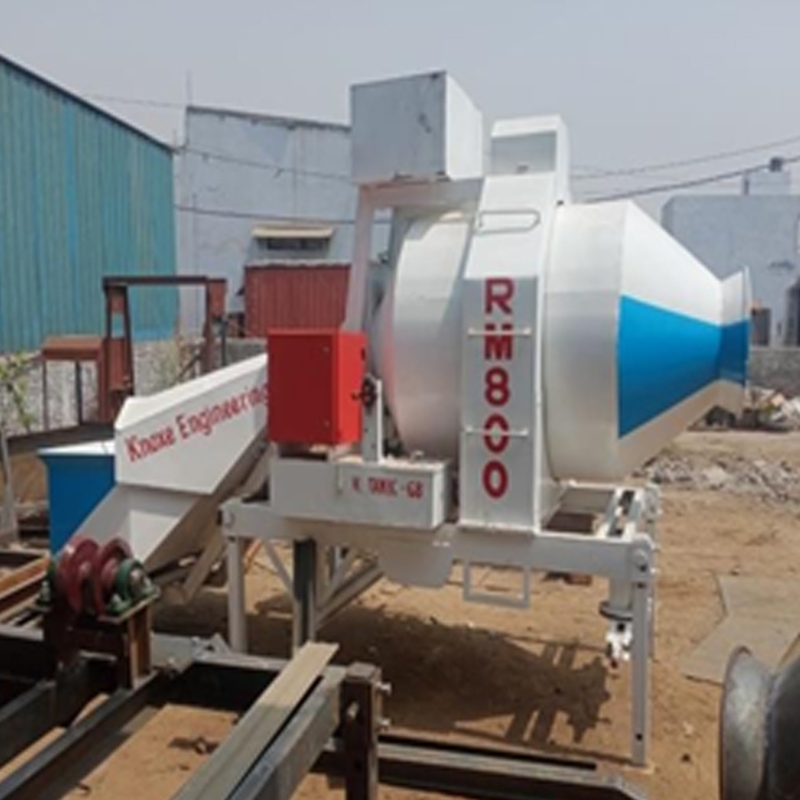

Reversable Batching Machine (RM800)
|
PARTICULAR |
KRM-800 |
|
MIXER |
Reversable Drum 500 liters |
|
No. Hoppers (bins) Thickness |
3*4mm THK |
|
Hopper Capacity |
800Kg. |
|
Output/ hour |
12 CUM/Hr. |
|
Discharge Height |
1.2Meter |
|
Main Drive Motor/Engine |
10 HP MOTOR /14 HP ENGINE |
|
Electronic Control Panel |
Semi-Automatic |
|
Water Tank |
225 liter |
|
Water Pump |
1 HP 3PHASE |
|
Water System |
Digital……. Auto Cut |
|
Hydraulic Pump |
24 1pm gear pump@200 bar (Duty) |
|
Hydraulic Cylinder |
1 |
|
Wheels |
Pneumatic Wheels 4 nos |
|
Leveling Jack |
Pin type 4 nos |
|
Weight of machine (kgs) |
2450kg |
|
Weighing System |
Load Cell Based Digital Weighing System |

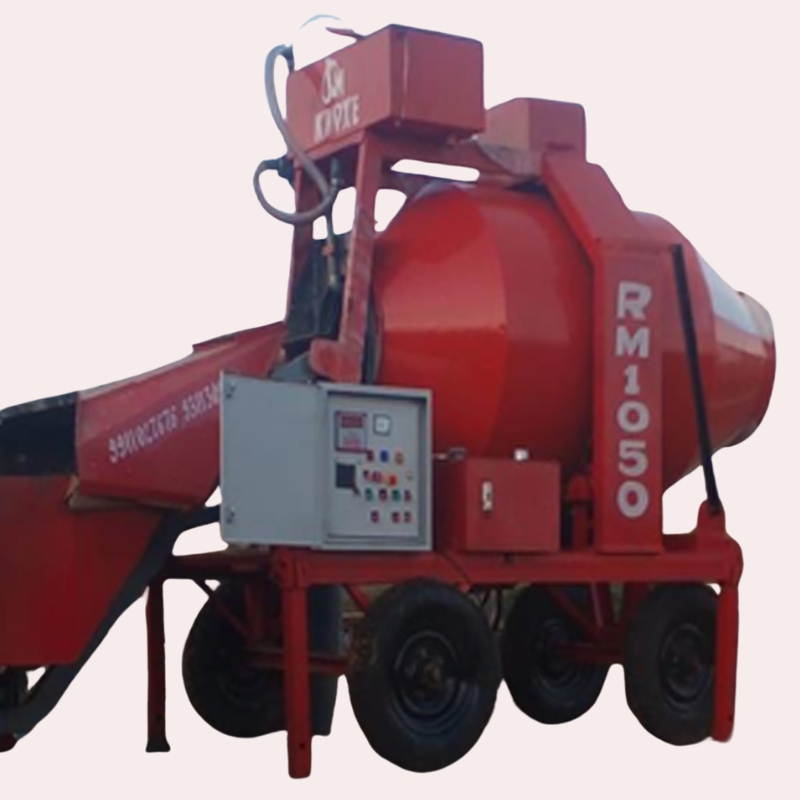

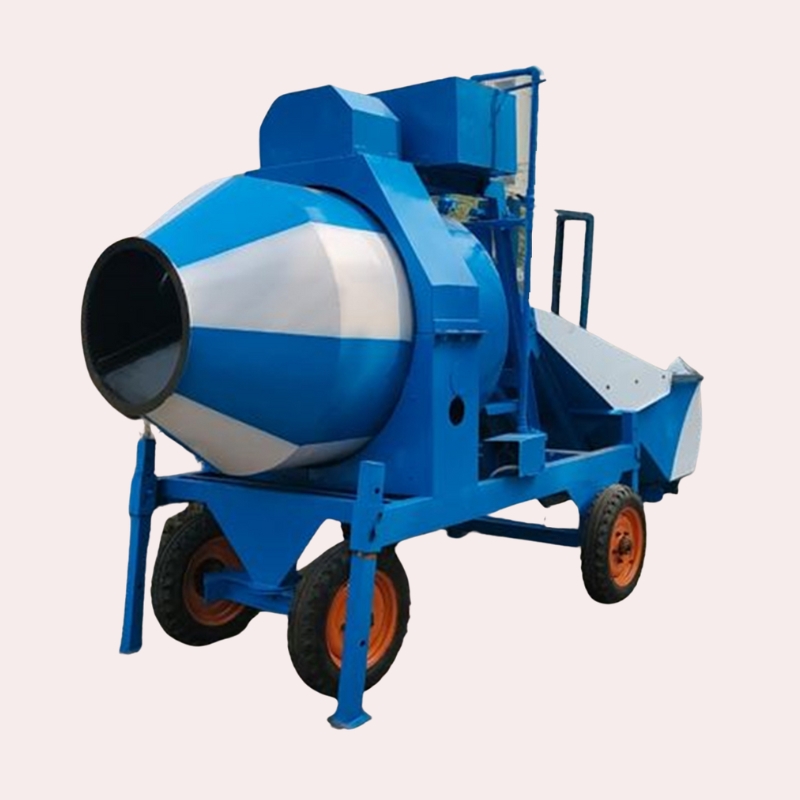

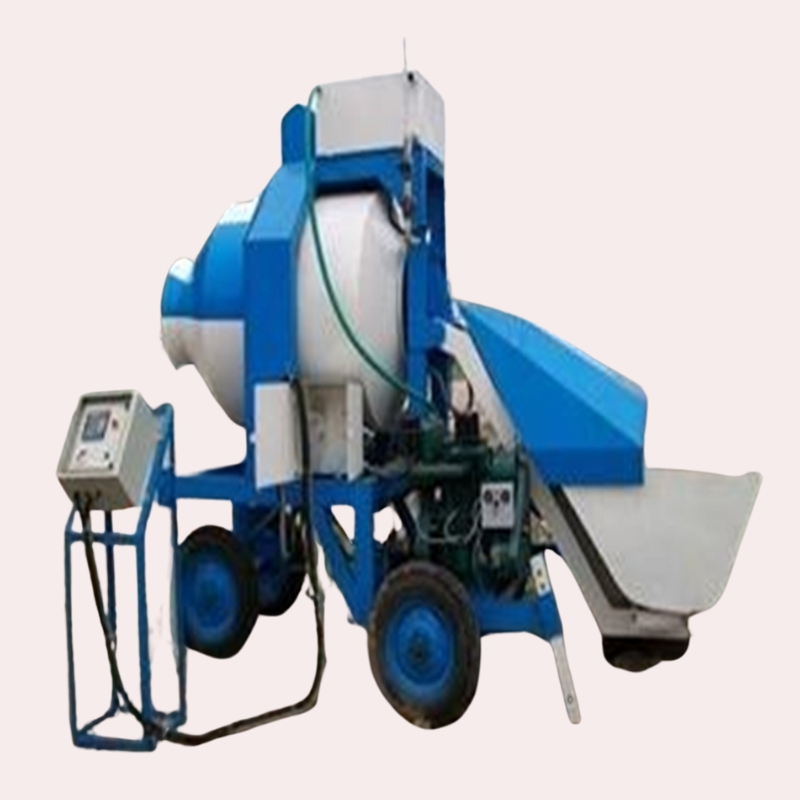

Reversable Mixer(RM1050)
|
Sr No. |
Particulars |
RM-1050 |
|
1 |
Mixer |
REVERSIBLE DRUM 1050/ LETERS |
|
2 |
No. Hoppers(bins) / Thickness |
3 NOS. |
|
3 |
Hopper Capacity |
1050Kg. |
|
4 |
Output/ hour |
12-15 CUM/Hr. |
|
5 |
Discharge Height |
1.2Meter |
|
6 |
Main Drive Motor/Engine |
15 HP MOTOR /20 HP ENGINE |
|
7 |
Electronic Control Panel |
SEMI AUTOMATIC WITH USB ATTACHMENT |
|
8 |
Water Tank |
325 liters |
|
9 |
Water Pump |
1.5 Hp. 3PH |
|
10 |
Water System |
DIGITAL AUTO CUT |
|
11 |
Hydraulic Pump |
12LPM GEAR PUMP |
|
12 |
Hydraulic cylinder |
1 |
|
13 |
Wheels |
PNEUMATIC WHEEL 4 NOS. (NEW) |
|
14 |
Grease Lubrication System |
YES |
|
15 |
Weight of machine (kgs) |
3950 KG |
|
16 |
Weighing System |
LOAD CELL BASE DIGITAL WEINGHING SYSTEM |
|
17 |
Print out Facility |
AVILABLE (printer cost exclusive in price) |
