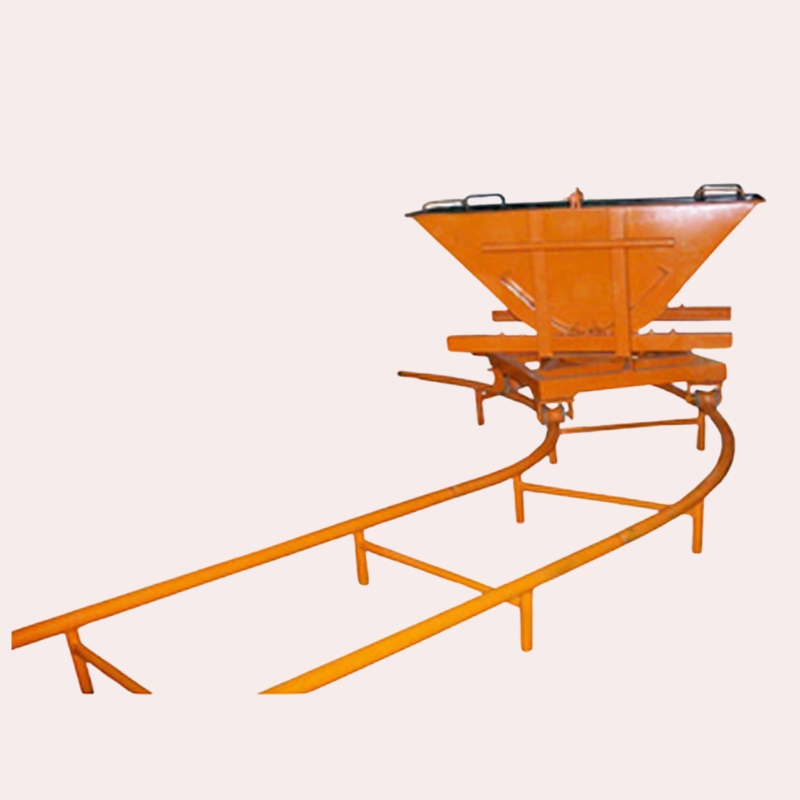

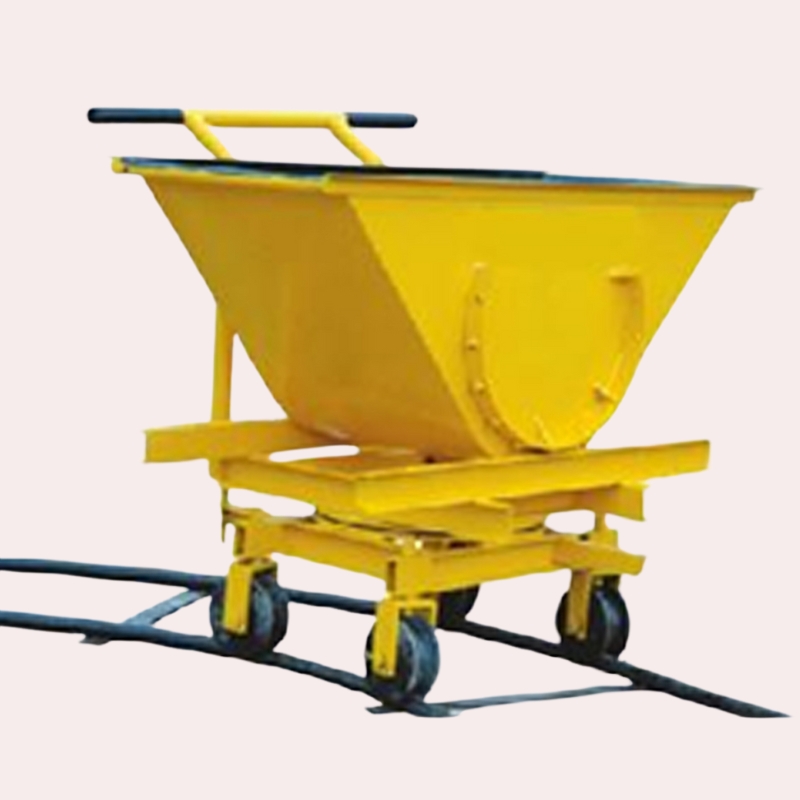

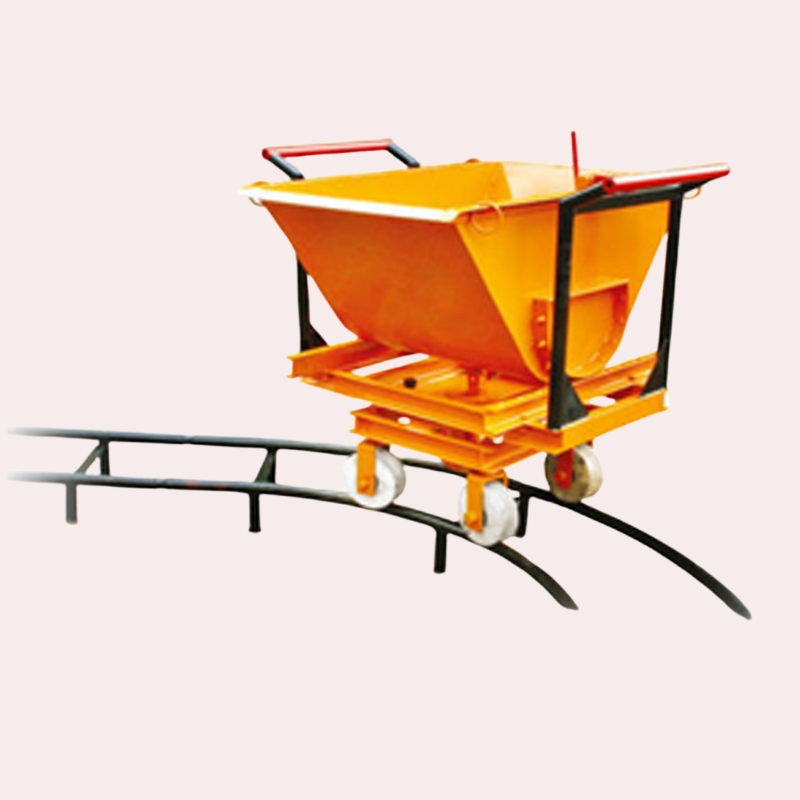

SLAB TROLLEY (WITH 120 FEET RAIL)
BUCKET CAPACITY : 750 KG (250 LITER) |
| SHEET THICKNESS : 10 GAUGE |
| ROLLER DIA – 6 INCH SOLID CASTING WITH TWO NOS. BEARING IN EACH ROLLER |
| BOTH SIDE TILTING BUCKET , 360* ROTATING TYPE BUCKET, WITH DISMANTEL TYPE FRAME , FITTED WITH 16 MM ROUND BAR FRAME. ALSO FITTED WITH CARRING HANDLE. |
| RAIL WIDTH : 600 MM |
| SUPPORTING JOINT DISTANCE – 2 FEET EACH |
| PIPE DIA : 32 MM |
| PIPE THICKNESS : 5 MM (HEAVY DUTY) |
| BEND ANGLE : 40* TO 45 * |
| WIRE ROPE – 10 MM ( MAHADEV) 150 FEET LENGTH |
| MOTOR – 7.5 HP THREE PHASE(KIRLOSKAR/CROMPTON) |
| GEAR BOXE – 4.5”CENTRE ALONG WITH REMOTE AND CONTROL PANNEL. |
WEIGHT OF MACHINE – APPROX 900 KG
length and breath of rail trolley top –
Length is 51 inch and breadth is 24 inch |
